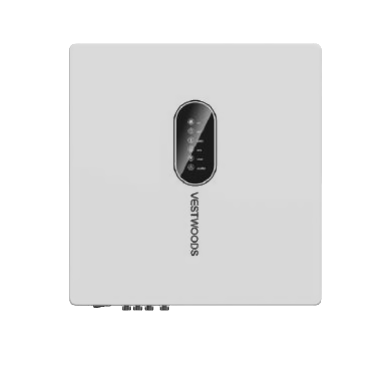

混合逆變器
混合逆變器(Hybrid Inverter)是一種結合了太陽能發電與儲能的逆變器，同時具備太陽能逆變器與電池逆變器的功能。
能整合太陽能發電和儲能系統，實現如調整太陽能發電系統的輸出功率、管理儲能系統的充放電等多種控制。
與傳統太陽能逆變器不同，混合逆變器能夠將太陽能發電系統產生的電力儲存在電池中，當太陽能發電不足時，能從電池供應能量，確保穩定的電力供應；同時也能連接太陽能發電系統和電網，當太陽能發電過剩時，可將多餘電力回送至電網。
靈活
- 支援寬範圍直流輸入
- 模組化設計，方便擴充
可靠
- 兼具防逆流功能
- 電池反接保護設計
- 高循環壽命
先進
- 智慧化管理系統
- 支援調度控制與需量反應管理
- 可整合分散式虛擬電廠(VPP)應用
- 支援手機遠端連線監控
產品規格
| Model | VW5KTHES | VW6KTHES |
|---|---|---|
| Max. Efficiency (PV to AC) | 98.2% | |
| Max. Efficiency (BAT to AC) | 94.0% | |
| Max. PV Power | 8kW | 9kW |
| Max. Input Current (input A/input B) | 15A/15A | |
| Max. Short Current (Input A/Input B) | 20A/20A | |
| MPPT Voltage Range | 160V~950V | |
| No. of MPPT Trackers | 2 | |
| String Per MPP Tracker | 1+1 | |
| Battery Voltage Range | 150V~600V | |
| Nominal AC Output Power | 5kW | 6kW |
| Max. AC Output Current | 3*8.3A | 3*10A |
| Nominal AC Voltage | 380V/400V/415V | |
| AC Voltage Range | 277V~520V (Adjustable) | |
| Nominal Grid Frequency | 50Hz/60Hz | |
| AC Frequency Range | 45Hz~55Hz/55Hz~65Hz (Adjustable) | |
| THDI | <3% (Nominal Power) | |
| Max. Operation Altitude | 4000m | |
| Noise Emission | ≤30dB | |
| IP rating | IP65 | |
| Cooling Concept | Natural Cooling | |
| Dimension(W*H*D) | 530*550*212 mm | |
| Weight | Approx. 26 kg | |
| Display | LED+APP | |
| Communication | BMS (CAN/RS485), Optional: WiFi/GPRS/4G/Ethernet, DI(DRM/RCR)/Meter(RS485), 1*DO, USB (Firmware upgrade) | |
| Certification | IEC 61727/62116, EN 50549-1, VDE 4105, AS 4777, CEI 0-21, G99, C10/11, NTS 097, RD627/NTS & IEC62109-1&2, IEC62040-1, IEC62477-1 | |
| Model | VW8KTHES | VW10KTHES |
|---|---|---|
| Max. Efficiency (PV to AC) | 98.4% | |
| Max. Efficiency (BAT to AC) | 94.0% | |
| Max. PV Power | 12kW | 15kW |
| Max. Input Current (input A/input B) | 20A/30A | |
| Max. Short Current (Input A/Input B) | 30A/40A | |
| MPPT Voltage Range | 160V~950V | |
| No. of MPPT Trackers | 2 | |
| String Per MPP Tracker | 1+2 | |
| Battery Voltage Range | 150V~600V | |
| Nominal AC Output Power | 8kW | 10kW |
| Max. AC Output Current | 3*13.3A | 3*15.2A |
| Nominal AC Voltage | 380V/400V/415V | |
| AC Voltage Range | 277V~520V (Adjustable) | |
| Nominal Grid Frequency | 50Hz/60Hz | |
| AC Frequency Range | 45Hz~55Hz/55Hz~65Hz (Adjustable) | |
| THDI | <3% (Nominal Power) | |
| Max. Operation Altitude | 4000m | |
| Noise Emission | ≤30dB | |
| IP rating | IP65 | |
| Cooling Concept | Natural Cooling | |
| Dimension(W*H*D) | 530*550*212 mm | |
| Weight | Approx. 29 kg | |
| Display | LED+APP | |
| Communication | BMS (CAN/RS485), Optional: WiFi/GPRS/4G/Ethernet, DI(DRM/RCR)/Meter(RS485), 1*DO, USB (Firmware upgrade) | |
| Certification | IEC 61727/62116, EN 50549-1, VDE 4105, AS 4777, CEI 0-21, G99, C10/11, NTS 097, RD627/NTS & IEC62109-1&2, IEC62040-1, IEC62477-1 | |
