混合逆變器
混合逆變器(Hybrid Inverter)是一種結合了太陽能發電與儲能的逆變器，同時具備太陽能逆變器與電池逆變器的功能。
能整合太陽能發電和儲能系統，實現如調整太陽能發電系統的輸出功率、管理儲能系統的充放電等多種控制。
與傳統太陽能逆變器不同，混合逆變器能夠將太陽能發電系統產生的電力儲存在電池中，當太陽能發電不足時，能從電池供應能量，確保穩定的電力供應；同時也能連接太陽能發電系統和電網，當太陽能發電過剩時，可將多餘電力回送至電網。
靈活
- 支援寬範圍直流輸入
- 模組化設計，方便擴充
可靠
- 兼具防逆流功能
- 電池反接保護設計
- 高循環壽命
先進
- 智慧化管理系統
- 支援調度控制與需量反應管理
- 可整合分散式虛擬電廠(VPP)應用
- 支援手機遠端連線監控
產品規格

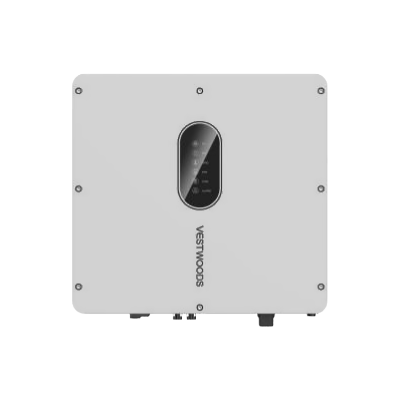

| Model | VW4KSLES | VW5KSLES | VW6KSLES |
|---|---|---|---|
| Max. Efficiency (PV to AC) | 97.3% | ||
| Max. Efficiency (BAT to AC) | 94.0% | ||
| Max. PV Power | 9kW | ||
| Max. Input Current (input A/input B) | 15A/15A | ||
| Max. Short Current (Input A/Input B) | 90A/90A | ||
| MPPT Voltage Range | 70V~520V | ||
| No. of MPPT Trackers | 2 | ||
| String Per MPP Tracker | 1 | ||
| Battery Voltage Range | 40V~64V | ||
| Nominal AC Output Power | 5kW | 5kW | 6kW |
| Max. AC Output Current | 25A | 27.2A | 27.2A |
| Nominal AC Voltage | 230V | ||
| AC Voltage Range | 150V~300V (Adjustable) | ||
| Nominal Grid Frequency | 50Hz/60Hz | ||
| AC Frequency Range | 45Hz~55Hz/55Hz~65Hz (Adjustable) | ||
| THDI | <3% (Nominal Power) | ||
| Max. Operation Altitude | 4000m | ||
| Noise Emission | <35dB | ||
| IP rating | IP65 | ||
| Cooling Concept | Natural Cooling | ||
| Dimension(W*H*D) | 515*485*175 mm | ||
| Weight | Approx. 25 kg | ||
| Display | LED+APP | ||
| Communication | BMS(CAN/RS485), Optional: WiFi/GPRS/4G/Ethernet, DI(DRM/RCR)/Meter(RS485), 1*DO, USB(Firmware upgrade) | ||
| Certification | VDE-AR-N4105, IEC 61727/62116, AS 4777.2, EN 50549-1, C10/11, G99, CEI 0-21, NRS 097-2-1, RD 1699/661/413, NTS & IEC62109-1&2, IEC62040-1, IEC62477-1 | ||

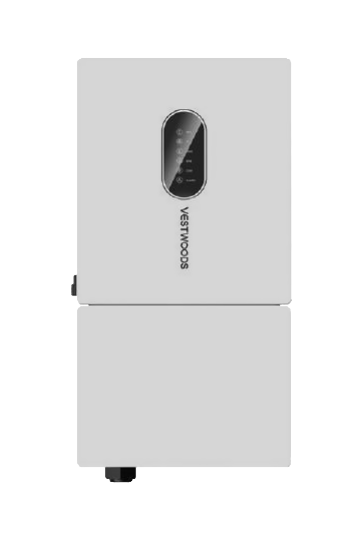

| Model | VW8KSLES | VW10KSLES |
|---|---|---|
| Max. Efficiency (PV to AC) | 98.0% | |
| Max. Efficiency (BAT to AC) | 94.0% | |
| Max. PV Power | 12kW | 15kW |
| Max. Input Current (input A/input B) | 30A/22A/22A | |
| Max. Short Current (Input A/Input B) | 40A/30A/30A | |
| MPPT Voltage Range | 70V~540V | |
| No. of MPPT Trackers | 3 | |
| String Per MPP Tracker | 2 | |
| Battery Voltage Range | 40V~64V | |
| Nominal AC Output Power | 8kW | 10kW |
| Max. AC Output Current | 36.6A | 46A |
| Nominal AC Voltage | 230V | |
| AC Voltage Range | 150V~300V (Adjustable) | |
| Nominal Grid Frequency | 50Hz/60Hz | |
| Power Factor | > 0.99 @Nominal power (adjustable 0.8 LD-0.8 LG) | |
| THDI | <3% (Nominal Power) | |
| Max. Operation Altitude | 4000m | |
| Noise Emission | <45dB | |
| IP rating | IP65 | |
| Cooling Concept | Natural Cooling | |
| Dimension(W*H*D) | 420*800*240 mm | |
| Weight | Approx. 35 kg | |
| Display | LED+APP | |
| Communication | RS485/CAN (for BMS), DRM/RS485 (for Meter), RS485, USB, Optional: WiFi/GPRS/LAN | |
| Certification | NRS 0-97, IEC61727, IEC62116 & IEC62109, CE-EMC | |
