工商業儲能系統
專為工商業儲能系統設計的磷酸鐵鋰(LFP)電池，適用於200V至1000V直流系統。
每個電池櫃皆內建智慧電池管理單元(BMU)，在安全性、循環壽命、能量密度、快速充電、溫度範圍與環保性等方面具備優異表現。
採用分散式架構與模組化設計理念，具高度可配置性，安裝、操作與維護皆簡便。

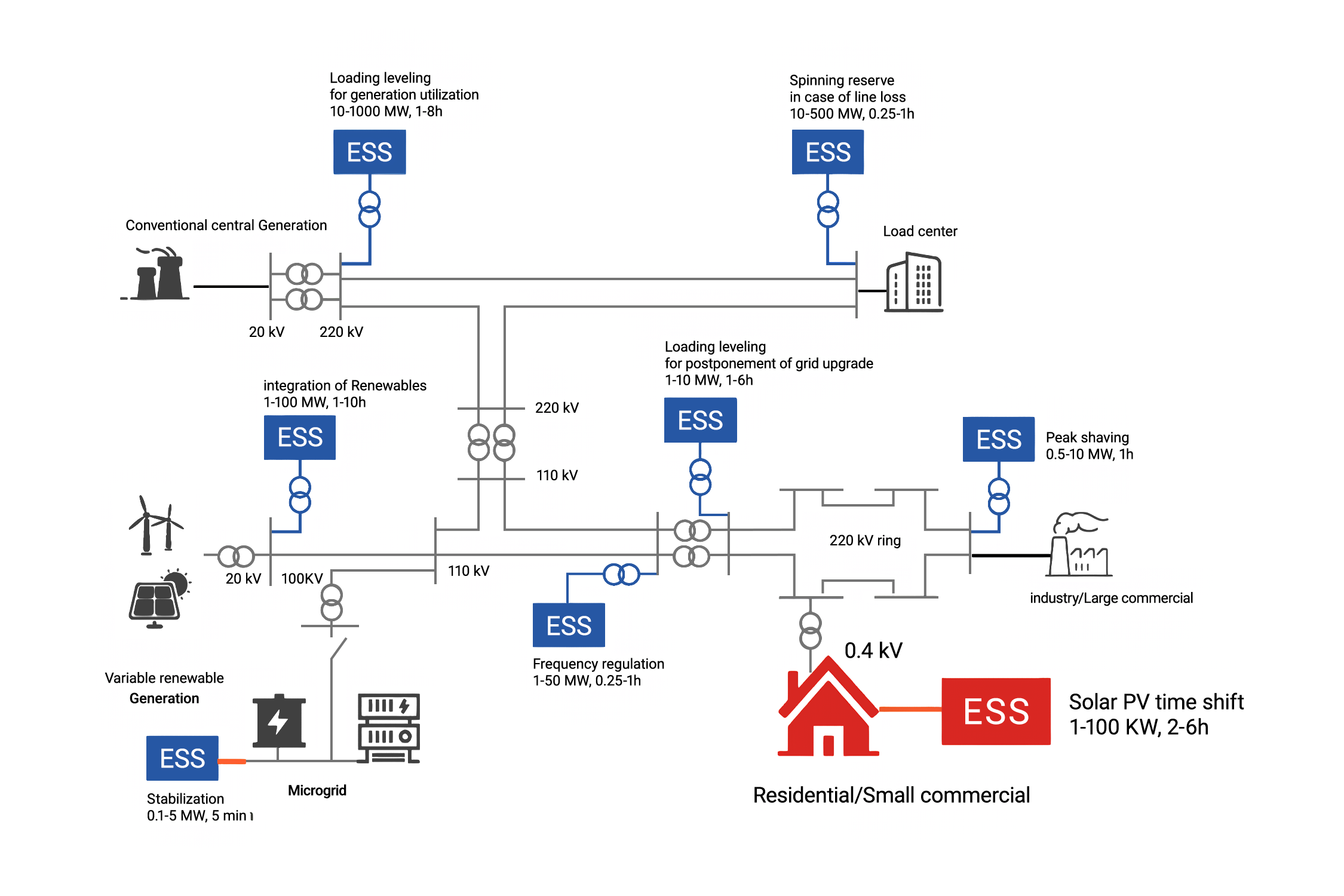

適用於1000V以下DC電壓的各種電池能量儲存系統，可解決配電量不足、用電峰谷差大、電能質量劣化等問題。
產品規格
| Model | VCS768-100K |
|---|---|
| Photovoltaic Input | |
| Photovoltaic power rating | 100kW |
| Photovoltaic voltage range | 500~1000V (500~900V Fully loaded) |
| Photovoltaic maximum Input current | 110A |
| AC output | |
| Power rating | 100kW |
| PCS output voltage | 110kW |
| Frequency range | 50~60Hz |
| Peak efficiency | 97.3% |
| Type of grid connection | 3W+N+PE / 3W+PE |
| Battery system | |
| System energy | 215.04kWh |
| Nominal voltage | 768V |
| Battery operating voltage range | 672V-852V |
| Max. charge/discharge current | 150A |
| System parameter | |
| Cooling | By air cooling, air conditioning or heat exchanger |
| Noise | <70dB |
| IP rating | IP54 |
| Operation temperature range | -20℃~+60℃ |
| Altitude | Max. 4000m (derating over 2000m) |
| Weight | Approx. 2800 kg |
| Dimension(W*H*D) | 1800*2300*1200 mm |
| Communication | RS485, CAN, Ethernet, Dry contact |
