家用儲能系統

家用儲能系統

Smart
Residential ESS
Solution

根據不同的用電需求，選擇最適合的家用儲能系統規格。

無論是一般家庭日常用電、因應尖峰與離峰電價差的節能策略、突發停電時的緊急備用電力，或是電力供應不穩定的地區，皆能提供穩定且可靠的電力解決方案。

電池模組

VE48100-P2

VE48100-P2

Low voltage 5kWh

VE48100-H2

VE48100-H2

High voltage 5kWh

Model VE48100-P2 VE48100-H2
General
Nominal Voltage 51.2V
Battery Voltage Range 44.8V~57.6V
Nominal Capacity 100Ah @0.2C, 25℃
Rated Energy 5.12kWh @0.2C, 25℃
Standard Charge/Discharge Current 20A @25℃
Max. Charge/Discharge Current 100A @25℃
Communication CAN/RS485 CAN
Expandable Capability 15P 5S
Self-Discharges ≤3%/month
Protection Over voltage & Under voltage / Over current / Short-circuit / Over temperature & Under temperature protection etc.
System parameter
IP rating IP20
Cooling Natural
Cycles ≥6000 cycles @80%DOD, 25℃
Dimension(W*H*D) 482*400*130 mm 482*400*130 mm (Handle not included)
Weight Approx. 42 kg
Certification IEC62619, IEC62620, EN61000, UN38.3, UL1973
Environment
Operating Temperature Range Charging: 0~60℃　Discharge: -20~60℃
Altitude 0~4000m (Derating over 2000m)
VE51100

VE51100

5kWh Ultra Battery Pack

Model VE51100
Nominal Energy 5.12kWh
Nominal Capacity 100Ah
Nominal Voltage 51.2V
Operating Voltage Range 42.0V~57.6V
Recommend Charge Voltage 57.6V
Charge Current/Max. Continuous 100A
Discharge Cut-off Voltage 42.0V
Discharge Current/Max. Continuous 100A
Depth of Discharge 80% DOD
Operating Temperature Range Charging: 0~60℃　Discharge: -20~60℃
Dimension(W*H*D) 444*155*517 mm (Without handles)
Weight Approx. 45 kg
IP rating IP54
Scalability Up to 16 units in parallel
Communication 2*CAN/RS485
Cooling Natural
Cycles ≥6000 cycles @80%DOD, 25℃
Installation Wall/Floor/19 or 23 inch cabinet/Rack
Altitude <2000m
Protection Overcharge, Overdischarge, Overtemperature, Overcurrent, Short Circuit etc.
Certification UN38.3, IEC62619, CE-EMC

混合逆變器

VW5KSES

VW5KSES

Low voltage 5kW

VW8KSES

VW8KSES

High voltage 8kW

Model VW5KSES VW8KSES
Efficiency
Max. Efficiency (PV to AC) 97.3% 97.0%
Input (PV)
Max. Input Power 9kW 13kW
MPPT Voltage Range 70V~520V 125V~500V
Max. Input Current (input A/input B) 15A/15A 16A/16A
Battery system
Compatible Battery Types Lithium batteries / Lead-acid batteries
Rated Battery Voltage 48V 85V~450V
Max. Charge/Discharge Current 120A/120A 60A/60A
Grid output
Rated AC Output Power 5kW 10kW
Grid Voltage Range 220Vac/150Vac~300Vac (Adjustable) 230Vac/176Vac~270Vac (Adjustable)
Max. AC Output Current 25A 43.5A
EPS output
Rated Output Power 5kW 7.5kW
Rated Output Current 21.7A 35A
Rated Output Voltage 230Vac
System parameter
Communication RS485, WIFI, LAN(Optional), CAN, DRM
Dimension(W*H*D) 515*450*175 mm 530*565*220 mm
Weight Approx. 27 kg Approx. 27 kg

ESS儲能系統

VE48100W

VE48100W

Wall-mounted
Low voltage 5kWh

VE48280W

VE48280W

Wall-mounted
Low voltage 15kWh

Model VE48100W VE48280W
General
Nominal Voltage 51.2V
Battery Voltage Range 44.8V~57.6V
Nominal Capacity 100Ah @0.2C, 25℃ 280Ah @0.2C, 25℃
Rated Energy 5.12kWh @0.2C, 25℃ 14.33kWh @0.2C, 25℃
Max. Charge/Discharge Current 100A @25℃ 200A @25℃
Communication CAN/RS485
Expandable Capability 4P
Self-Discharges ≤3%/month
Protection Over voltage & Under voltage / Over current / Short-circuit / Over temperature & Under temperature protection etc.
System parameter
IP rating IP65
Cooling Natural
Cycles ≥6000 cycles @80%DOD, 25℃
Dimension(W*H*D) 410*665*207 mm 500*800*250 mm
Weight Approx. 56 kg Approx. 128 kg
Certification IEC62619, IEC62620, EN61000, UN38.3
Environment
Operating Temperature Range Charging: 0~50℃　Discharge: -20~55℃
Altitude 0~4000m (Derating over 2000m)
V-Power

V-Power

Stackable Energy Storage
High voltage

Model V-Power T3 V-Power T4 V-Power T5
Cell Type LFP
Nominal Energy 8.29kWh 11.05kWh 13.82kWh
Nominal Capacity 27Ah
Nominal Voltage 307.2V 409.6V 512.0V
Operating Voltage Range 268.8V~345.6V 358.4V~460.8V 448.0V~576.0V
Recommeded Charge Voltage 345.6V 460.8V 576.0V
Charge Current / Max. Continuous 27A
Discharge Cut-off Voltage 268.8V 358.4V 448.0V
Discharge Current / Max. Continuous 54A
Recommended DOD 80%
Operating Temperature Range Charging: 0~50℃　Discharge: -20~55℃
Dimensions(W*H*D) 530*774*255 mm 530*942*255 mm 530*1110*255 mm
Weight 106 kg 135 kg 163 kg
IP IP20
Expansion 4
Communication RS485/CAN
Cycles ≥6000 @80% DOD, 25℃
Installation Stacked
Allowed Humidity Range ≤95% RH
Max. Operation Altitude ≤2000m
Certification UN38.3, IEC 62619, CE-EMC
VEH48200C

VEH48200C

Low voltage 10kWh

VEH48400C

VEH48400C

Low voltage 20kWh

VEH204100C

VEH204100C

High voltage 20kWh

Model VEH48200C VEH48400C VEH204100C
General
Nominal Voltage 51.2V 51.2V 204.8V
Battery Voltage Range 44.8V~57.6V 44.8V~57.6V 179.2V~217.6V
Nominal Capacity 200Ah @0.2C, 25℃ 400Ah @0.2C, 25℃ 100Ah @0.2C, 25℃
Rated Energy 10.24kWh @0.2C, 25℃ 20.48kWh @0.2C, 25℃ 20.48kWh @0.2C, 25℃
Max. Charge/Discharge Current 100A @25℃ 200A @25℃ 100A @25℃
Communication CAN/RS485 CAN/RS485 CAN/RS485/DI&DO
Expandable Capability 8P 4F 4P
Self-Discharges ≤3%/month
Protection Over voltage & Under voltage / Over current / Short-circuit / Over temperature & Under temperature protection etc.
System parameter
IP rating IP20
Cooling Natural
Cycles ≥6000 cycles @80%DOD, 25℃
Dimension(W*H*D) 580*680*350 mm 640*1200*350 mm 580*1280*350 mm
Weight Approx. 118 kg Approx. 232 kg Approx. 197 kg
Certification IEC62619, IEC62620, EN61000, UN38.3
Environment
Operating Temperature Range Charging: 0~60℃　Discharge: -20~60℃
Altitude 0~4000m (Derating over 2000m)
VEH51V20ES

VEH51V20ES

All-in-one
Low voltage 20kWh

VEH204V20AS

VEH204V20AS

All-in-one
High voltage 20kWh

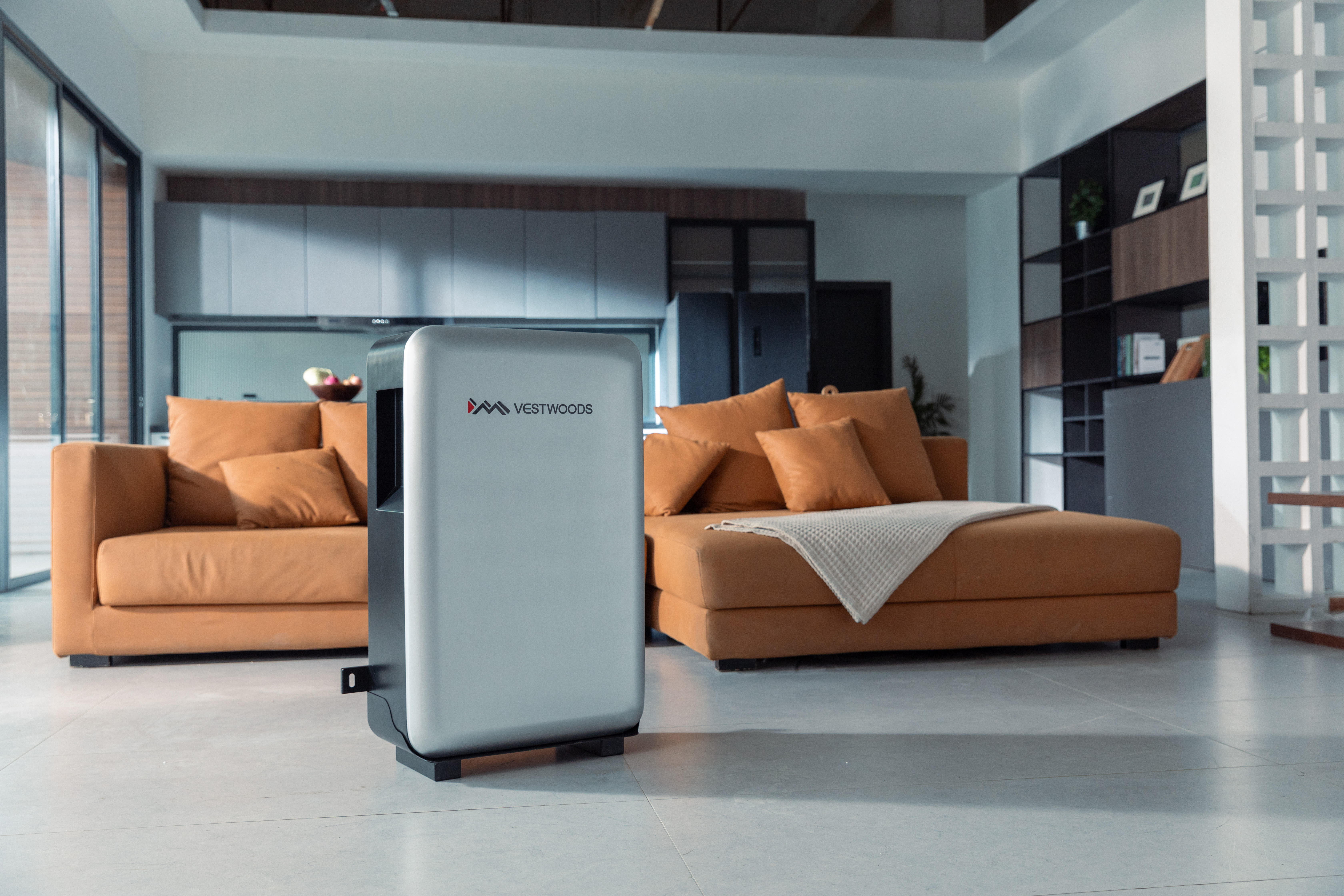

V-Mute

V-Mute

All-in-one Solution

Model VEH5KS51V20ES VEH12KS204V20AS
System Efficiency
Max. Efficiency 97.6% 98.2%
PV Input
Max. Input Power 7kW 15.6kW
MPPT Voltage Range 125V~500V
Max. Input Current (input A/input B) 14A/14A 12A/12A
Battery System
Type of Battery Lithium Battery
Battery Voltage Range 44.8V~54.4V 179.2V~217.6V
Charge/Discharge Current 95A/104A 100A/100A (1C)
Grid Output
Rated Output Power 5kW 12kw
Grid Voltage Range 230Vac/176Vac~270Vac 112Vac~120Vac/220Vac~240Vac (Split phase)
Rated Output Current 21.7A 50A
EPS Output
Rated Output Power 5kW 12kw
Rated Output Current 21.7A 50A
Rated Output Voltage 230Vac 112Vac~120Vac/220Vac~240Vac (Split phase)
System Parameter
Communication RS485, WiFi, LAN(Optional), CAN, DRM
Dimension(W*H*D) 640*350*1800 mm 580*395*2000 mm
Weight Approx. 270 kg Approx. 320 kg
Model V-Mute
System Specification
Nominal Output Power 6kW
Cell Type LFP
IP rating IP21
Dimension(W*H*D) 545*200*1566 mm
Weight Approx. 125 kg
Inverter Technical Specification
Nominal AC Voltage 230V single-phase L+N+PE
Backup EPS
Communication WiFi
Nominal Grid Frequency 50/60Hz
Max. PV Input Power 9kW
Max. PV Input Current 15A/15A
Max. PV Voltage 550V
MPPT Tracker/Strings 2/1
MPPT Voltage Range 70V~540V
Max. Charging/Discharging Current 120A
Max. Charging/Discharging Power 6kW
Safety Certification IEC62109-1&2, IEC62040-1, IEC62477-1
Grid Certification VDE-AR-N4105, AS 4777.2, EN 50549-1, G99, CEI 0-21, NRS 097-2-1
Battery Technical Specification
Nominal Energy 10.24kWh
Nominal Voltage 51.2V
Max. Charging/Discharging Current 100A
Cycle life 6000 @80% DOD, 25℃
Certification UN38.3, IEC 62619, CE-EMC
