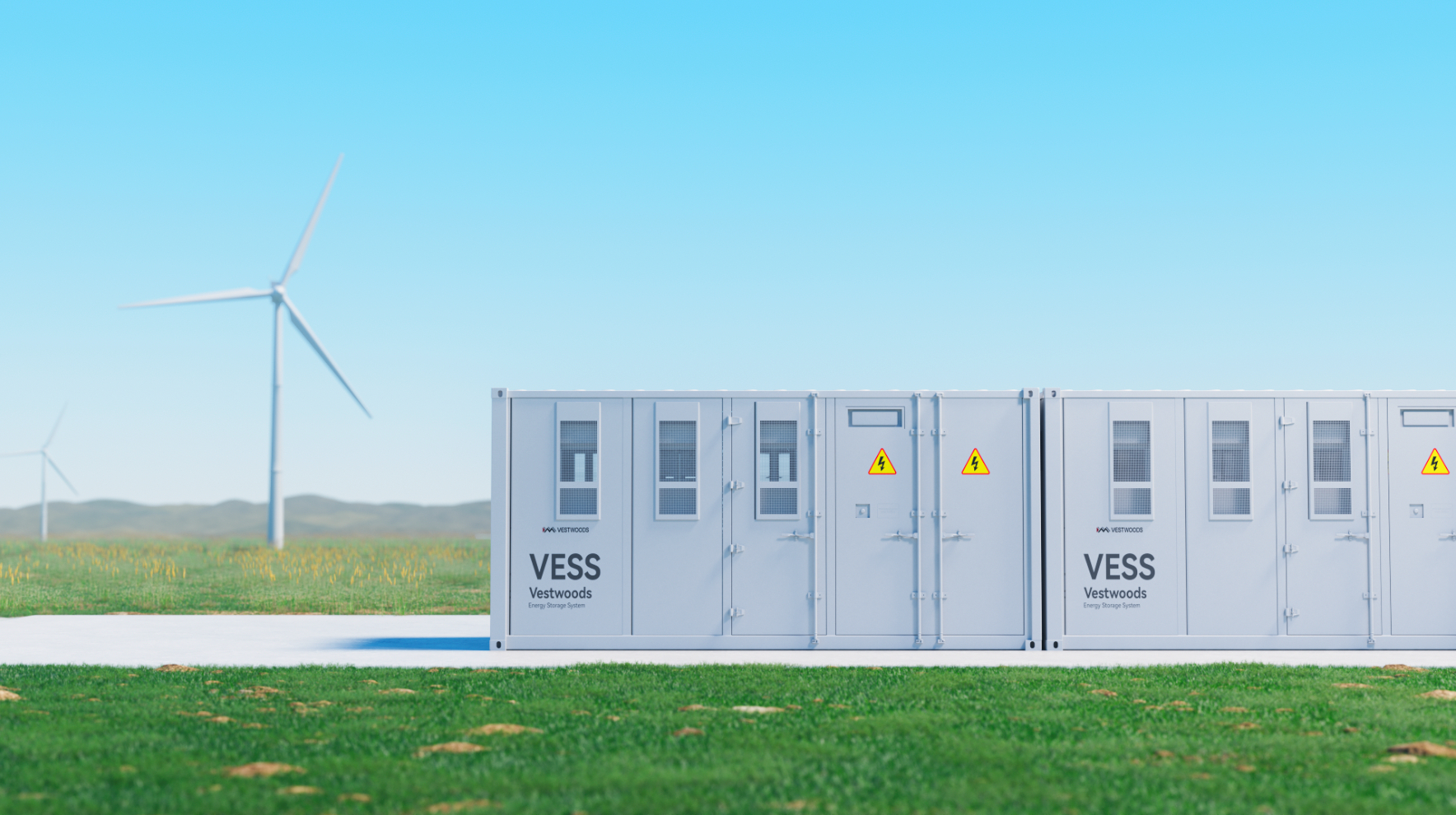

工商業儲能系統

專為工商業儲能系統設計的磷酸鐵鋰(LFP)電池，適用於200V至1000V直流系統。

每個電池櫃皆內建智慧電池管理單元(BMU)，在安全性、循環壽命、能量密度、快速充電、溫度範圍與環保性等方面具備優異表現。

採用分散式架構與模組化設計理念，具高度可配置性，安裝、操作與維護皆簡便。

適用於1000V以下DC電壓的各種電池能量儲存系統，可解決配電量不足、用電峰谷差大、電能質量劣化等問題。

VCS768-100K

Model	VCS768-100K
Photovoltaic Input
Photovoltaic power rating	100kW
Photovoltaic voltage range	500~1000V (500~900V Fully loaded)
Photovoltaic maximum Input current	110A
AC output
Power rating	100kW
PCS output voltage	110kW
Frequency range	50~60Hz
Peak efficiency	97.3%
Type of grid connection	3W+N+PE / 3W+PE
Battery system
System energy	215.04kWh
Nominal voltage	768V
Battery operating voltage range	672V-852V
Max. charge/discharge current	150A
System parameter
Cooling	By air cooling, air conditioning or heat exchanger
Noise	<70dB
IP rating	IP54
Operation temperature range	-20℃~+60℃
Altitude	Max. 4000m (derating over 2000m)
Weight	Approx. 2800 kg
Dimension(WHD)	180023001200 mm
Communication	RS485, CAN, Ethernet, Dry contact

VEM10K / VEM30K

Model	VEM10K	VEM30K
DC Input
Maximum Input Power	12kW	-
Maximum Input Voltage	600V	-
MPPT Voltage Range	200V-550V	-
MPPT Tracker/Strings	2/2	-
Maximum Input Current	22A	-
Maximum Short-Circuit Current	27.6A	-
Battery system
Cell Type	LFP
Nominal voltage	460V	537V
Battery operating voltage range	360V-518V	420V-604.8V
System energy	25kWh-46kWh	30kWh-54kWh
Max. charge/discharge current	25A	90A
Grid Output (AC Side)
Nominal Power	10kW	30kW
Rated Voltage	400V/380V
Maximum AC Output Current	16.5A	43.3A
Rated Frequency	50Hz/60Hz
Grid Connection	Three-phase, 3L/N/PE
Power Factor	≈1 (±0.8 adjustable)
Harmonic (THD)	≤3%
Others
Compatible Inverters	GoodWe	Sinexcel
Operation temperature range	-20~60℃
Communication	CAN/RS485/WIFI (optional)	Ethernet/RS485
Certification	AS/NZS 4777.2:2015, IEC62109-1&2, IEC62040-1	UL1741, UL9540, CEC listing

VEM50K / VEM100K

Model	VEM50K	VEM100K
DC Input
Maximum Input Power	55kW	110kW
Maximum Input Voltage	950V
MPPT Voltage Range	520V-900V
MPPT Tracker/Strings	2/2
Maximum Input Current	220A	440A
Maximum Short-Circuit Current	-
Battery system
Cell Type	LFP
Nominal voltage	460V
Battery operating voltage range	360V-518V
System energy	101kWh-184kWh	202kWh-276kWh
Max. charge/discharge current	100A	100A/200A
Grid Output (AC Side)
Nominal Power	50kW	100kW
Rated Voltage	400V/380V
Maximum AC Output Current	72A	144A
Rated Frequency	50Hz/60Hz
Grid Connection	Three-phase, 3L/N/PE
Power Factor	≈1 (±0.8 adjustable)
Harmonic (THD)	≤3%
Others
Compatible Inverters	Sinexcel
Operation temperature range	-20~60℃
Communication	RS485, CAN, Ethernet
Certification	CE LVD, IEC 62109, EMC, AS/NZS 61000, AS4777
